Stock #: 71573
Status: In-Stock
Condition: Rebuilt
Make: Reliance
Model: P18G7405MA
Serial #:
Output: 5 HP
RPM: 3600
Frame: 184T
Current: AC
Volts: 230/460
Amps: 11.6/5.8
Phase: 3
Cycles: 60
Pull: F1
Enclosure: TEFC
Dimensions
U: 1 1/8
S: 1/4
NW: 2 7/8

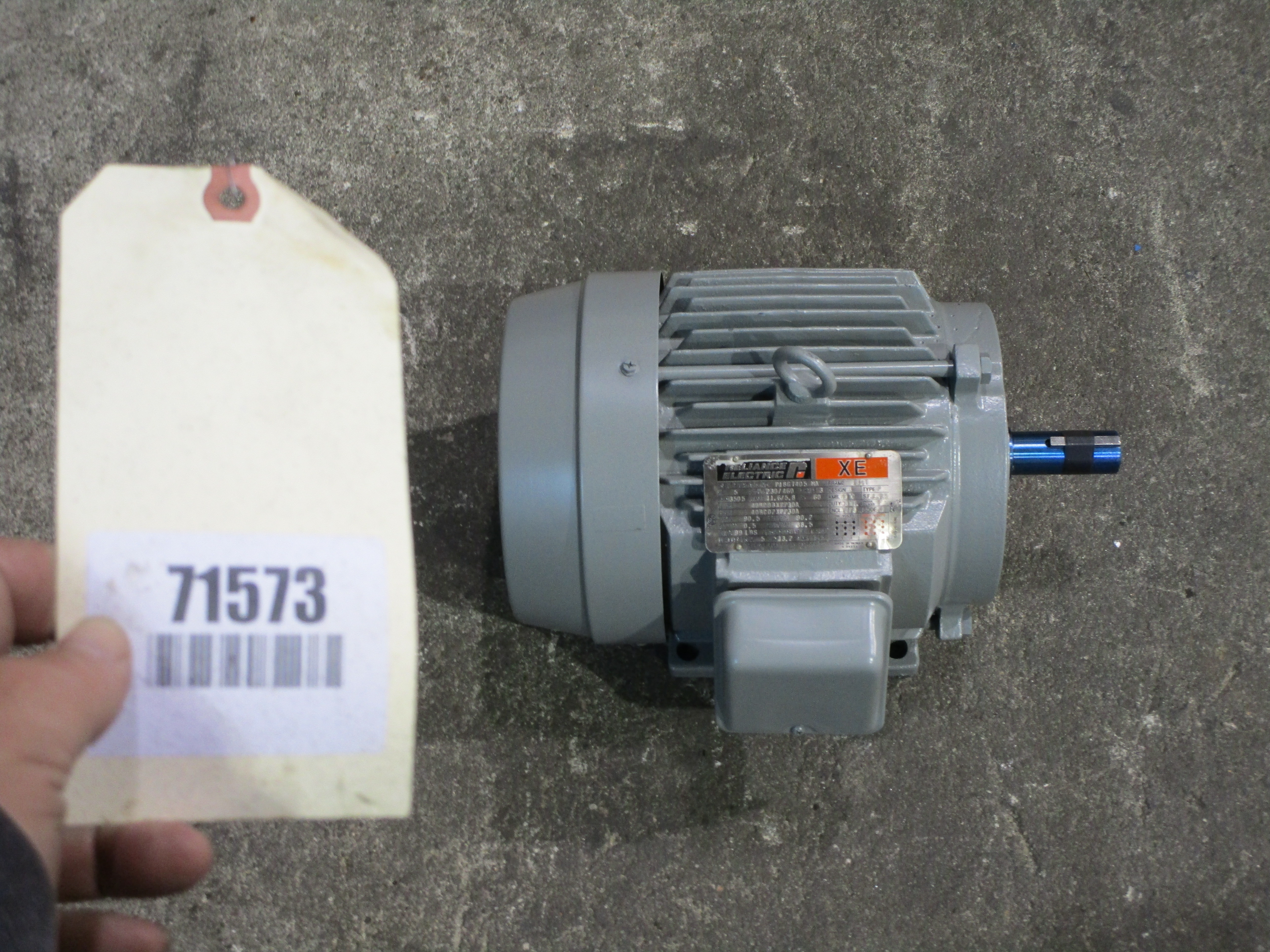

#71573


Click a thumbnail to enlarge


You may also want to look at the following similar motors
Stock # HP/KW RPM Frame AC/DC Make Volts VA VF Condition Encl.
9476 5 HP 3600 184T AC Toshiba 575 EOK TEFC 3-N1-A1
64913 5 HP 3600 184T AC Toshiba 575 New TEFC 6-1C
67421 5 HP 3600 184T AC Teco 575 Rebuilt TEFC 2-2405A1
67965 5 HP 3600 184T AC Power bloc 230/460 EOK TEFC 3-U1-A1
71548 5 HP 3600 184T AC Baldor 575 Rebuilt TEFC 2-2406-B1
71572 5 HP 3600 184T AC Reliance 230/460 EOK TEFC B2-2202-A1
71573 5 HP 3600 184T AC Reliance 230/460 Rebuilt TEFC 9-906-A2
71724 5 HP 3600 184T AC Reliance 230/460 EOK TEFC 3-X1-B1
73879 5 HP 3600 184T AC US Motors 230/460 New TEFC 2-2203-B1
