Stock #: 72489
Status: In-Stock
Condition: New

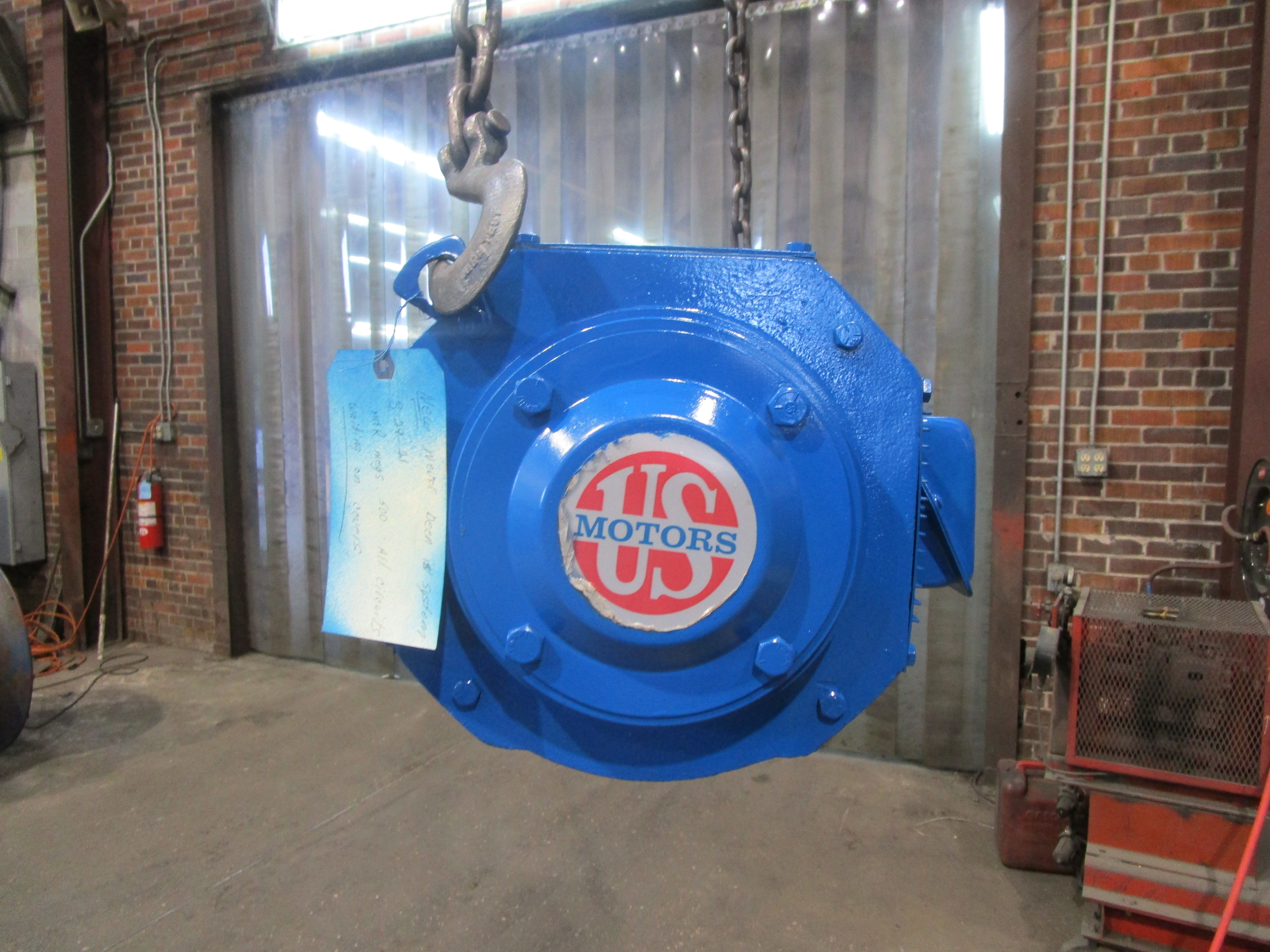

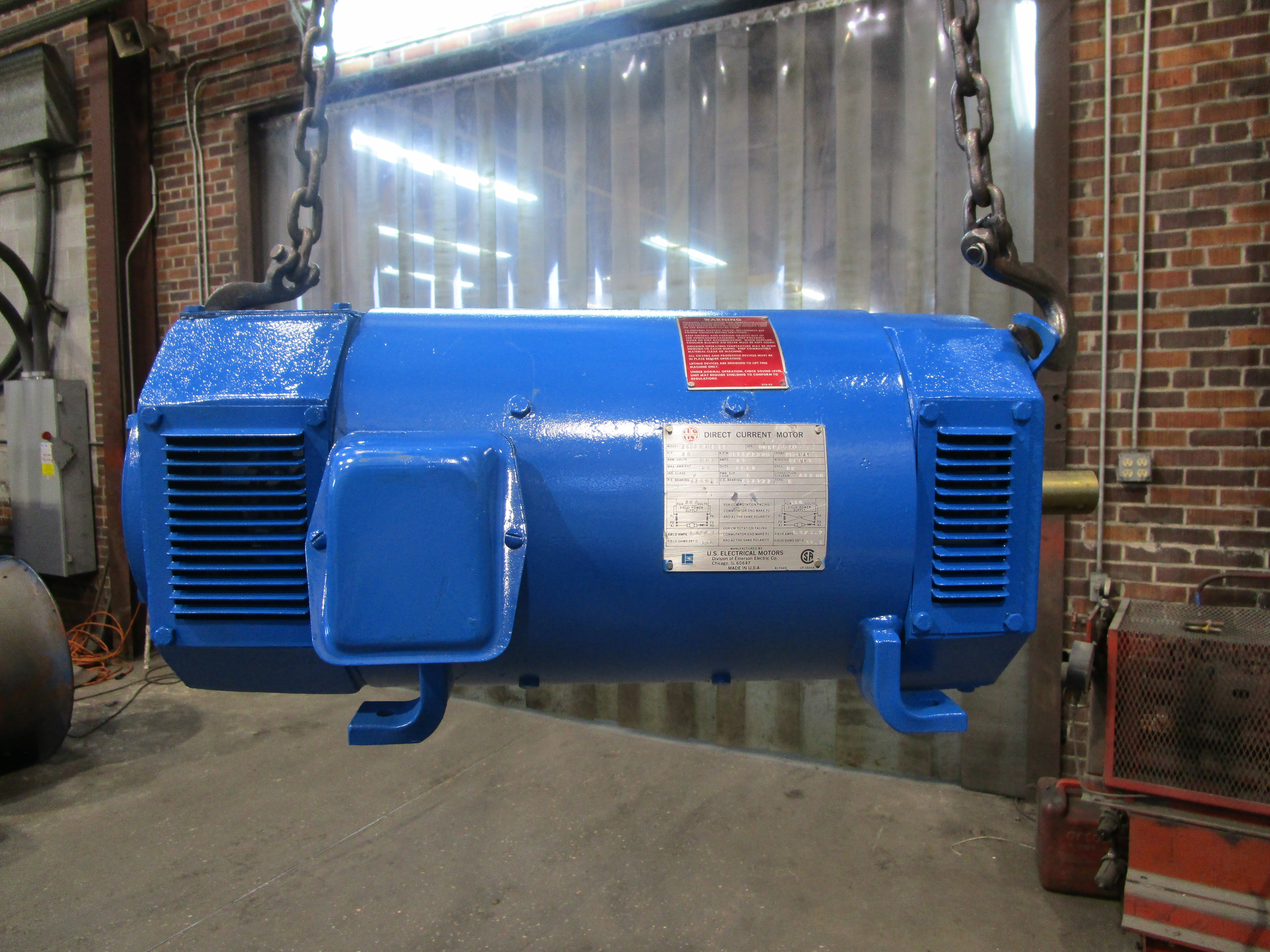

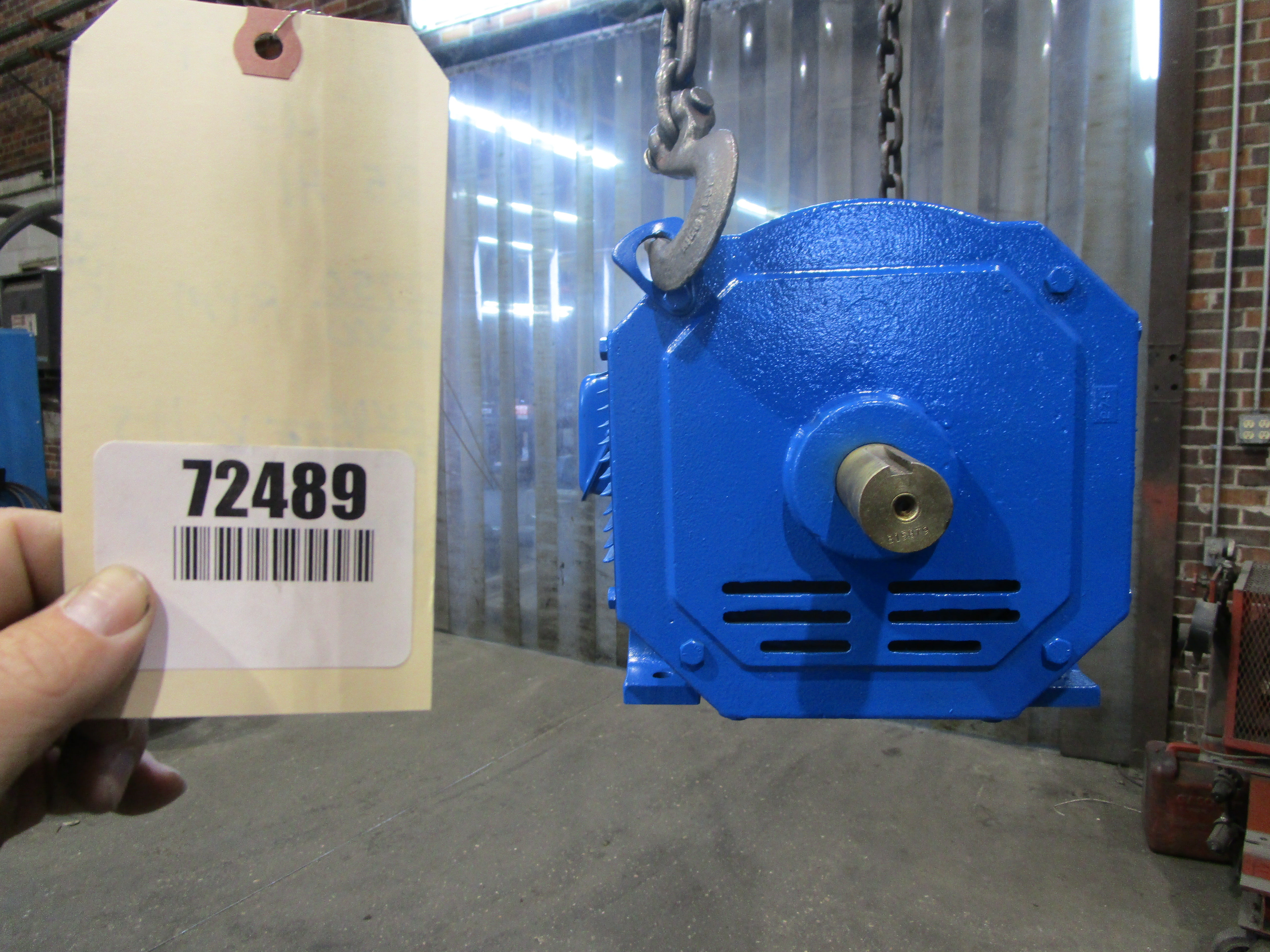

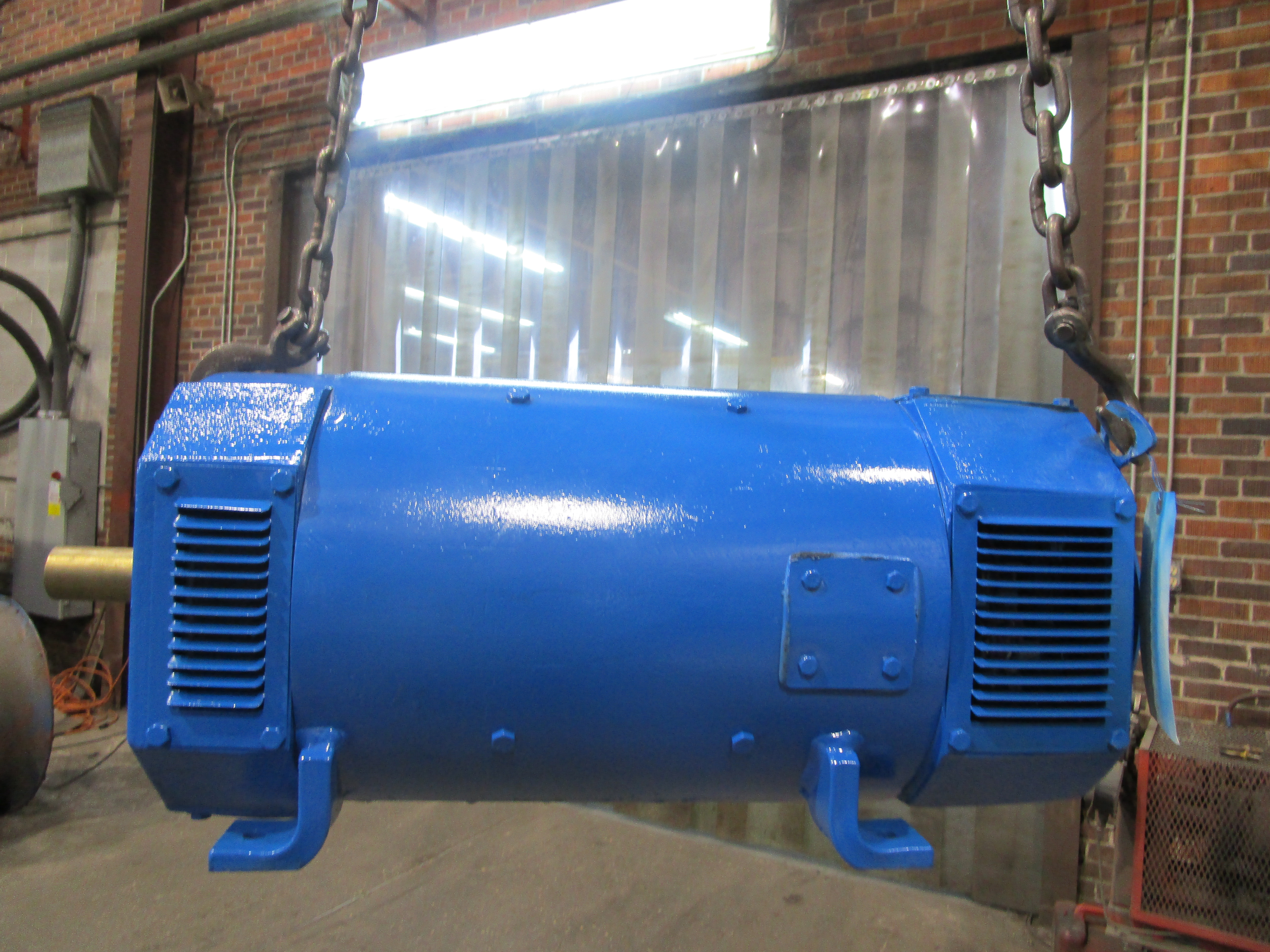

Make: US Motors
Model: 2510042025
Serial #: 90173-GW
Output: 25 HP
RPM: 1800 2300
Frame: 2510AT
Current: DC
VA: 240
VF: 300/150
Arm. Amps: 89
Field Amps: 1.4/2.8
Field Ohms:
Pull: F1
Enclosure: ODP
Dimensions
U: 1 5/8
S: 3/8
NW: 3 7/16



#72489


Click a thumbnail to enlarge


You may also want to look at the following similar motors
Stock # HP/KW RPM Frame AC/DC Make Volts VA VF Condition Encl.
72489 25 HP 1800 2300 2510AT DC US Motors 240 300/150 New ODP 2-2203-B1
